TWA Series

LED Display

FINE PITCH LED DISPLAY

TWA Series LED Display

P1.875

Fine Pitch LED displays represents the top technology of LED display field, they may be used in high-end conference rooms, TV studios, the government mansion, etc. It has the smallest pixel pitch (1mm or even less) and the finest display effect. BRWall is the pioneer in the field of HD LED display, and has many successful cases already.

Key Features

Die-cast Aluminum

Integrated die-cast aluminum design, 360° all-round heat dissipation, longer life.

2D/3D Display

Support 2D/3D display at the same time, active 3D without strobe, no loss of resolution.

Low Voltage Power

low voltage power supply, natural heat dissipation, no fan, zero noise.

No Granular Effect

No granular effect, good uniformity and no mosaic phenomenon.

Point-by-point Calibration

Module-level point-by-point calibration design, power-on automatic balance correction.

Front Maintenance

Complete front mounting and front maintenance structure, the overall installation thickness is only 125mm.

Dual Signal Inputs

Redundant power supply design, dual signal inputs, system’s stability and reliability.

Completely Front Maintenance

Cabinets and modules are separated packed, first install cabinets and then install modules.
Smart adjust: unique alignment features ensure the video wall is perfect aligned and seamless, the flatness tolerance of screen is ≤ 0.1mm.

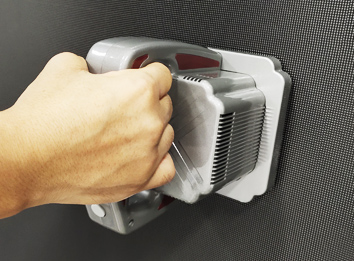

1.The magnet edge-on the front.

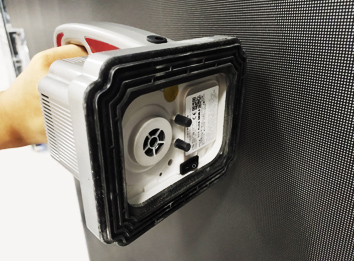

2.Magnet is appressed in the middle of module.

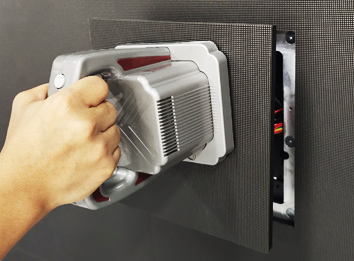

3.Pulling the magnet slowly, module will be apart from cabinet.

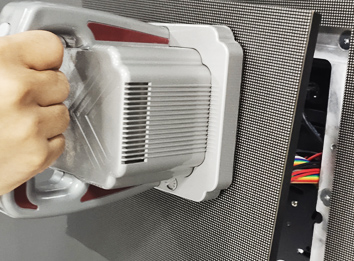

4.The same way to put the module back to the cabinet.

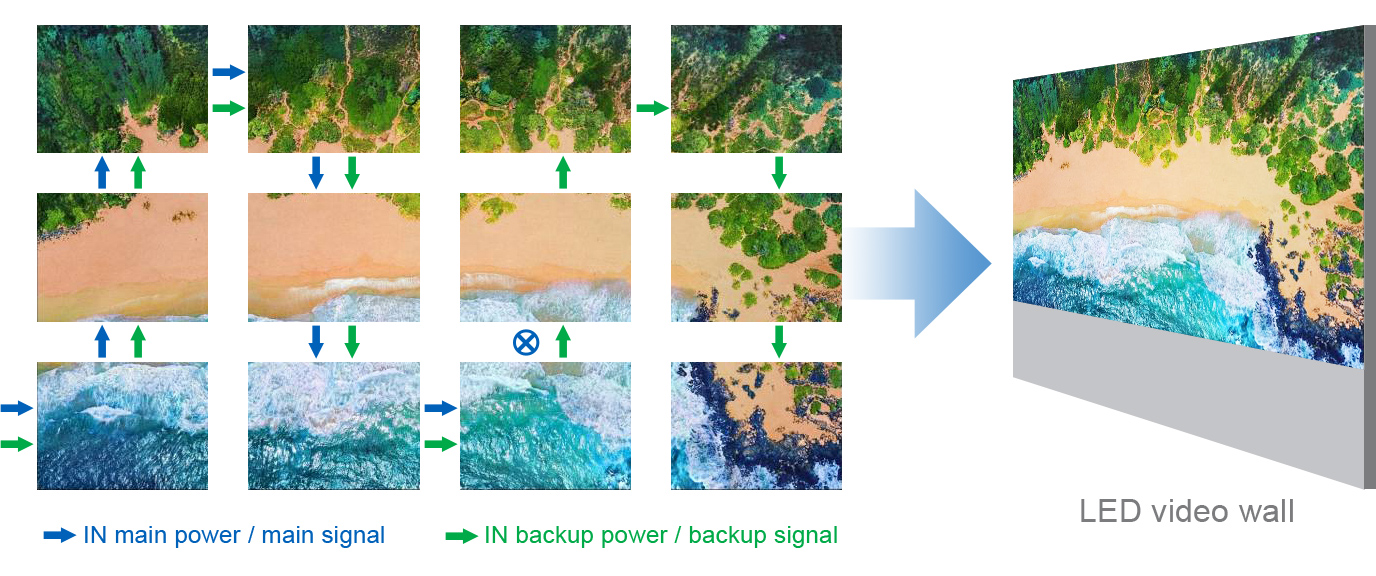

Power Supply &
Signal Back up

Redundant power supply design, dual signal inputs, auto matically detecting the failure then switch, ensure the whole system’s stability and reliability.

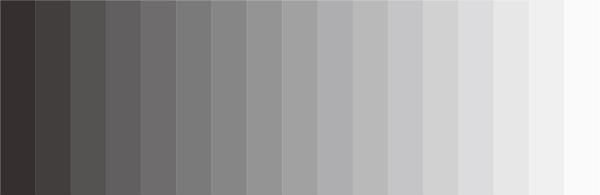

Low Brightness
With High Gray Scale

BRWall LED display use high quality LED Lamps and PWM drive IC, goes with Lamp Video’s patented mask and special images arithmetic processing that makes a better color rendering, color revivification and more details even in low brightness mode. Excellent gray scale performance even in low-brightness of 100 cd/㎡.
Normal LED display Low gray scale poor performance.
BRWall LED display low brightness, high gray scale.

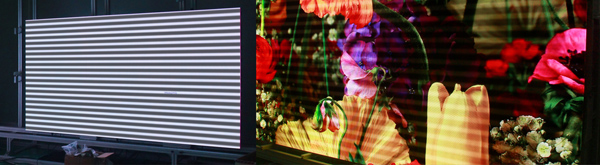

960Hz (Shutter Speed 2000)

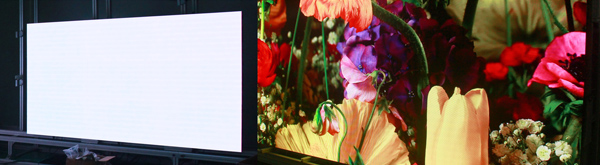

3840Hz (Shutter Speed 2000)

Professional Image
With High Refresh Rate

Up to 3840Hz high refresh rate keeps it high quality display performance even under professional camera, no water waves or screen flashing, totally meet the live show requirements.

Nanosecond Level Response Time

LED response shortly in nanosecond level without smearing or double image effect.
BRWall video LED Display
Projection
TWA series enjoy a long product life (100,000 hours, 8-10years),
attributed to its advanced experience in manufacturing and processing management, rich design experience in drive circuit.

100000

Hours Lifetime

Specifications

TWA Series P1.875
Pixel Pitch 1.875 mm
Module Size (WxHxD) 240mmx240mmx13mm
Physical Density 284,444 Pixel/㎡
Module Resolution (W×H) 128x128
Module Port HUB-HD01
Driving Method Constant Current 1/32scan
LED Encapsulation Commercial Grade 3-in-1 SMD1515 (Black)
Module Working Voltage 5 VDC
Module Maximum Power Consumption 35W
Viewing Angle (Horizontal/Vertical) 120°
Module Of Cabinet (W×H) 2x2
Cabinet Resolution (W×H) 256x256
Option Distance 1-30m
Frame Rate 60Hz/120Hz(3D)
Refresh Rate 1920-3840Hz Adjustable
Brightness 750 cd/㎡ Adjustable
Contrast Ratio 5000:1
Colour Temperature 8500K-11500K
Brightness Uniformity >97%
Color Uniformity >97%
Light Pixel Centerline Spacing Difference <3%
Singel Pix Brightness Corretion Support
Gray Scale/color ≥16.7M color
LED Lifetime: Typical 100,000 hrs
Cabinet Weight 5.2Kg
Cabinet Flatness ≤0.1mm
Cabinet Size (WxHxD) 480mmx480mmx80mm
Maximum Power 180 W
Display Working Voltage 100-240VAC 50/60Hz
Working environment temperature -10~40℃
Working Environment Humidity(RH) 10%～70%
