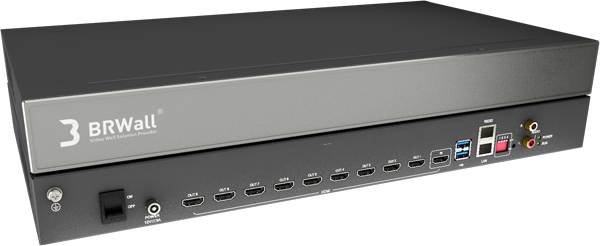

BR20-Art Series

Adopting an embedded architecture for higher stability, with built-in 32G/64 storage space.

Standard configuration includes 1 HDMI input, supporting functions such as signal windowing, cross leveling, and roaming. A single spliced image can have 8 windows.

Supports point-to-point resolution output, supports 8K ultra high definition background images, and supports 4K/8K high-definition video playback.

Breaking the traditional MxN splicing layout, each display screen can be combined and spliced at any angle, and each display screen supports 360 degree rotation with a minimum adjustment range of 1 degree.

A single device can accommodate up to 9 screens and supports cascading multiple devices.

Support image distortion correction processing to solve lossless playback of irregularly shaped videos.

Equipped with splicing special effects function, it can achieve screen atomization, mirror effect and other special effects functions, making the design application more diverse.

Support video scene switching, playback pause, volume adjustment, window layout switching, video pre monitoring and other functions.

Support USB video and image playback and display, and can freely roam across screens with plug and play functionality.

Supports fiber optic audio and analog audio output.

Provide 2000 sets of material selection, support cloud updates, and solve high-definition material playback difficulties.

Support RS232 \ network \ infrared \ AL (strong current) and other central control interface protocol access, achieving one click control.
