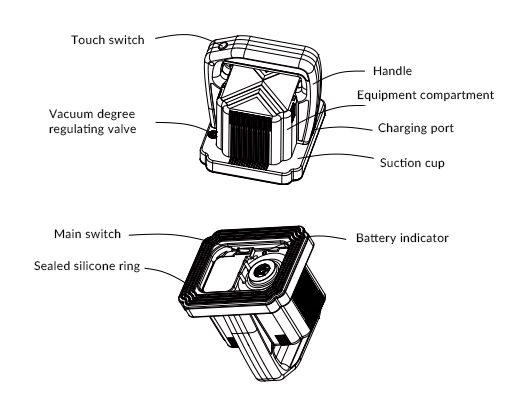

LED Display Vacuum Front Maintenance Tool

LED Accessory

LED Display
Vacuum Front Maintenance Tool

L*W*H: 148*125*150MM
Suction cup size: 148*125MM
Applicable module size: all indoor serious led display module

1.The magnet edge-on the front.

2.Magnet is appressed in the middle of module.

3.Pulling the magnet slowly, module will be apart from cabinet.

4.The same way to put the module back to the cabinet.

Key Features

Size And Weight

Small size, light weight, easy to carry

Easy To Use

Excellent ergonomic design for easier use

More Models

Vacuum valve design for more models

More Universal

Suitable for all series of modules,
more universal

Unique Limit Design

Unique limit design prevents PCB warp and light falling off

Protect Module Security

Unique anti-static design to protect module security

Safer Work At Height

User-friendly of backpack design, safer work at height

Solve Temporarily Out of Power

Support for using while charging, solve temporarily out of power

Longer Motor Life

Unique air duct design for better heat dissipation and longer motor life

Specifications

Charger charging voltage	100-240V
Charger output voltage	25.2V
Lithium battery energy	42Wh
Maximum continuous charging current	1.0C5A
Continuous discharge duration	18MIN(This data is laboratory data, change according to the use environment, data will fluctuate)
Standby power consumption	10uA
Working environment	-20-45℃ 15%-85%RH
Operating Temperature	-10℃-45℃
