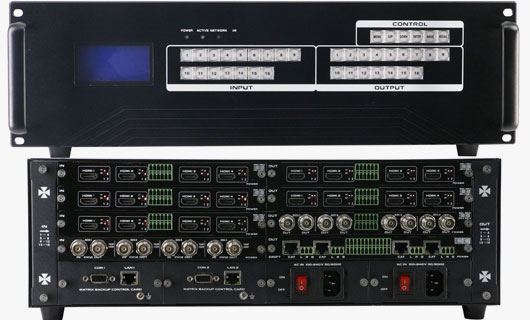

Seamless Matrix Switcher

Seamless Matrix Switcher

All the signal input and output cards using 1-card 4-port, wide range selections of the input and output cards, it provides users the most flexible configuration ability to meet with the real applications.

Key Features

The seamless matrix switcher series have 3 models: 16x16, 8x8 and 4x4. All the signal input and output cards using 1-card 4-port, wide range selections of the input and output cards.
Supports 7*24 continuously working and with dual LAN and RS232 backup control, it’s convenient for users to control via PC, iPad, APP and the 3rd parties central control by the the RS232 control commands.
With the dual RS232 and LAN control, users also can simply set up and control the surrounding equipment, such as the projector, electric curtain and TVs.

Supports 1 card 4-port cards, seamless or fast switching.

Support front buttons with blue background light.

Supports front buttons with 2-key switch, IR remote, RS232.

Support 1080P, 4K30 and 4K60 three types of the cards for selections.

Supports hot-swappable on all the input and output cards.

Supports the central control.

Support TV Wall function.

System Topology


Specifications

Model series Seamless Matrix Switcher
Description 16x16 modular matrix switcher
Input Support DVI/HDMI/VGA/CVBS/YPbPr/SDI/HDBaseT/Fiber input cards
Output Support DVI/HDMI/VGA/CVBS/YPbPr/SDI/HDBaseT/Fiber output cards
Protocol Support HDMI1.4/ HDMI2.0/ DVI1.0, HDCP, EDID, scaling
Color space Support RGB444, YUV444, YUV422 and x.v.C color extension
Resolution 640×480---1920×1200@60Hz(VESA), 480i---1080p60Hz(HDTV)
Distance 70m(Cat6), 500m(MM Fiber), 10km(SM fiber), 10m(Digital cable)
Control Front buttons, dual RS232+LAN control, IR remote, WEB GUI/ APP
Power Supply AC: 110V—260V 50/60Hz
Consumption 17W(No cards loaded)
Dimension 480*405*138mm
Weight 11.6kg
Working Temp 0℃ ~50℃
Storage Temp -20℃ ~55℃
