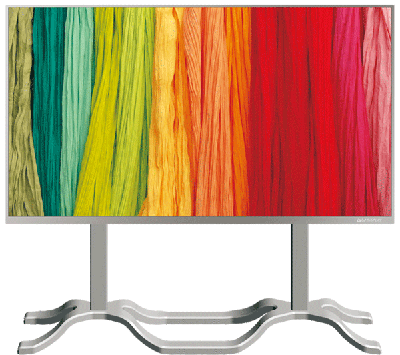

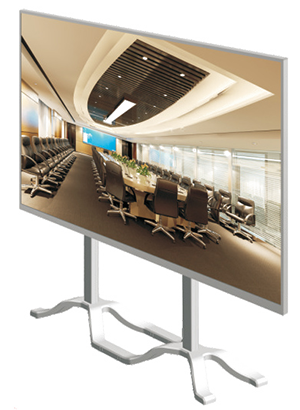

Super LED TV
120'' / 150'' / 180'' / 210'' / 240''
With 100% fully front access design, super LED TV supports for easy installation and maintenance, which is a perfect solution for high end conferencing or commercial display application.
Easy Front Service Design
1.The magnet edge-on the front.
2.Magnet is appressed in the middle of module.
3.Pulling the magnet slowly, module will be apart from cabinet.
4.The same way to put the module back to the cabinet.
Patent Mask Technology
Moire Elimination Mask
Patent Anti-moire mask design can obtain a perfect contrast ratio and reduce the moire effect. It's an ideally solution for broadcasting or applications under a camera.
Utra-thin
Super thin designed, with totally thickness≤58mm;
Clean built-in routing, makes a simplified and elegant out-looking;
Clean built-in routing, makes a simplified and elegant out-looking;
Utra-thin & Light
Unit weight is 7.4kg, T≤ 58mm
Large View
Wide view angle of 160°
Good Heat Dissipation
Aluminum alloy with elaborate cooling
design achieve efficient heat dissipation effect.
design achieve efficient heat dissipation effect.
Brightness adjustable
200-1500cd/㎡ brightness adjustable.
Easy Front Service
100% fully front access design
Efficient and Energy Saving
More effective energy saving than other LED
display when under the same brightness.
display when under the same brightness.

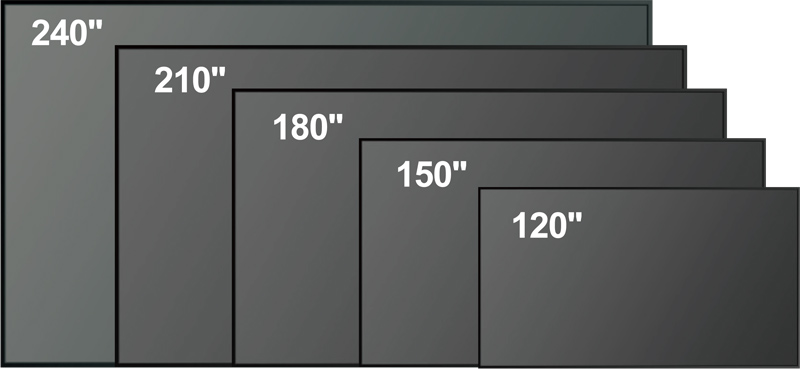

Large Size
120''/150''/180''/210''/240'' size available
for more options，to create a large, seamless
and gorgeous display especially applicable to
villa, exhibition hall, conference or
entertainment center.
for more options，to create a large, seamless
and gorgeous display especially applicable to
villa, exhibition hall, conference or
entertainment center.

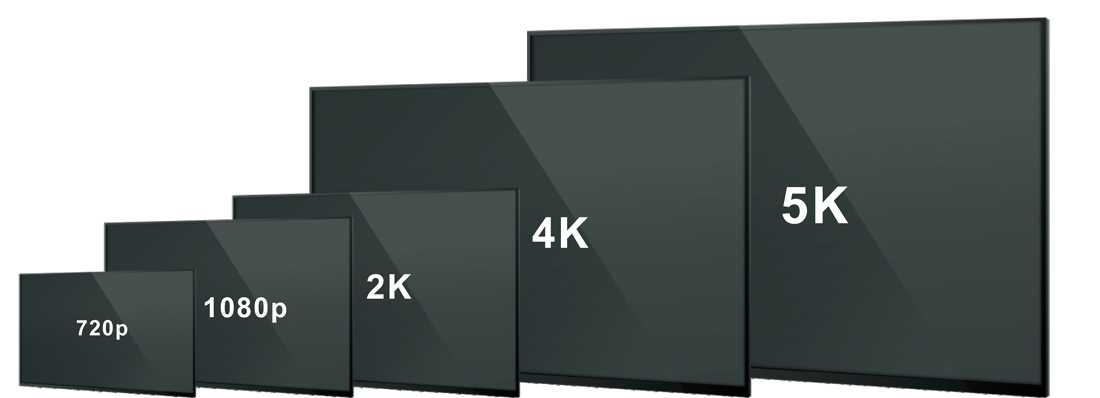

5k =5120x2880
4k =3840x2160
2k =2560x1440 / 2048x1152
1080p =1920x1080
720p =1280x720
4k =3840x2160
2k =2560x1440 / 2048x1152
1080p =1920x1080
720p =1280x720
Key Features
Marvelous LED TV
A next generation of true TV
Seamless & Easy connection
Seamless & Easy connection
High Refresh Rate
With a high refresh rate up to 3840Hz
Super Long Working Life
100000 hours working life, approximately
last for 8-10 years
last for 8-10 years
Wide Color Gamma
High vivid performance due to active RGB
lighting technology
lighting technology
Low Temperature
Advanced cooling solution
120''
Size(mm): 2560×1440mm
PH1.0: 2k
PH1.2: Cinema2k
PH1.3: 1080p
PH1.6: 1536×864
PH2.0: 720p
PH2.5: 1024×576
PH1.0: 2k
PH1.2: Cinema2k
PH1.3: 1080p
PH1.6: 1536×864
PH2.0: 720p
PH2.5: 1024×576
150''
Size(mm): 3200×1800mm
PH1.0: 3200×1800
PH1.2: 2k
PH1.3: 2400×1350
PH1.6: 1080p
PH2.0: 1600×900
PH2.5: 720p
PH1.0: 3200×1800
PH1.2: 2k
PH1.3: 2400×1350
PH1.6: 1080p
PH2.0: 1600×900
PH2.5: 720p
180''
Size(mm): 3840×2160mm
PH1.0: 4k
PH1.2: 3072×1952
PH1.3: 2880×1620
PH1.6: 2304×1296
PH2.0: 1080p
PH2.5: 1536×864
PH1.0: 4k
PH1.2: 3072×1952
PH1.3: 2880×1620
PH1.6: 2304×1296
PH2.0: 1080p
PH2.5: 1536×864
210''
Size(mm): 4480×2520mm
PH1.0: 4480×2520
PH1.2: 3584×2240
PH1.3: 3360×1890
PH1.6: 2688×1512
PH2.0: 2240×1260
PH2.5: 1792×1008
PH1.0: 4480×2520
PH1.2: 3584×2240
PH1.3: 3360×1890
PH1.6: 2688×1512
PH2.0: 2240×1260
PH2.5: 1792×1008
240''
Size(mm): 5120×2880mm
PH1.0: 5k
PH1.2: 4096×2528
PH1.3: 4k
PH1.6: 3072×1728
PH2.0: 2k
PH2.5: Cinema2k
PH1.0: 5k
PH1.2: 4096×2528
PH1.3: 4k
PH1.6: 3072×1728
PH2.0: 2k
PH2.5: Cinema2k
Remark:
720p= 1280x720
1080p=1920x1080
2k=2560x1440
4k=3840x2160
5k=5120x2880
Cinema2k=2048x1152
720p= 1280x720
1080p=1920x1080
2k=2560x1440
4k=3840x2160
5k=5120x2880
Cinema2k=2048x1152
