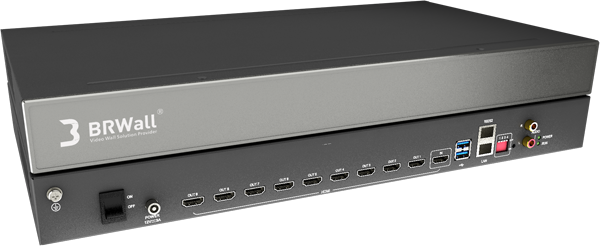

— BR20 Series
Video Wall Controller

BR20 series video wall controller is new generation professional image processing product which is based on the development of multi-windows, ultra-high definition and visual display control technology.

Mini Size,Professional Design
Support 4in 8out / 8in 4out / 4in 4out.
Unlimited Video Wall
Content Layout Design
Roaming, Picture in Picture, Zooming in/out, Stretching, Cropping.
Opening at least 4 windows on single display.
Up to 255 presets management.
3 Different Signals In One Card
Support HDMI / DVI / VGA / mixtrue.
Control Your System At Anytime, Anywhere, With Any Device
Support windows / iOS / web control.
Support signal preview and video wall monitoring.
Support KVM control remote content servers through network, no additional hardware required.
Open Control Protocols
Open Control Protocols
support third-party control.
Scheduling
Scheduling
Change or reycle contents and layout on the video wall at any designated time.
7/24 Continuously Operation
7/24 Continuously Operation
Support redundant power supply, industrial grade design.
Video Wall Switch On/Off
Video Wall Switch On/Off
Support switch on/off video wall power by sending control commands to the video wall.

Windows Software Control

Markview is a free, high performance video wall management software which provides an easy and intuitive way to manage your BRWall-based video wall locally or remotely. Available as a feature-rich, free-licence software for Microsoft Windows with drag & dropfunctionality, it can be used to create and manage layouts offline or in real time.

Picture in picture, overlay, roaming, scale, clone, crop, stretch and label input windows.

User management, define permission for each function.

Presets management, up to 255 presets, auto-cycle enabled.

Signal source previewing and video wall monitoring.

Quick windows postion.

Video wall switch on/off setting.

Pre-layout function to aviod mis-operation.

Scheduling: Video wall on/off, Call Presets and auto-cycle.

Matrix switch control and able to control third-party device.

Network KVM Enabled.

Multi-group setup and control.

Open Control Protocol, easy to adopt any central control system such as AMX, Crestron.


Download the software demo for video wall controller

The download file include: Software & Software User Manual for video wall controller.
Full Name*
Email*

Please fill in a valid email address to ensure that you can receive the download file.

Downloads
— iOS / Web Control
More Power, More Performance, More Pro.
Synchronization Control.
Free and user-friendly ios app. It can be easily downloaded free from Apple App store and provides users with the interface needed to quickly and effectively manage video walls of any size in real-time.
Free and user-friendly web-based software. It allows users to control the BRWall-based controller from anywhere through any popular web browseres by using an off the shelf PC/Server with IP network.
Synchronizes control video wall stutas from all controllers in the specific network and has its own database. It allows users to control same system either by PC, iPad or Web browser at the same time.
