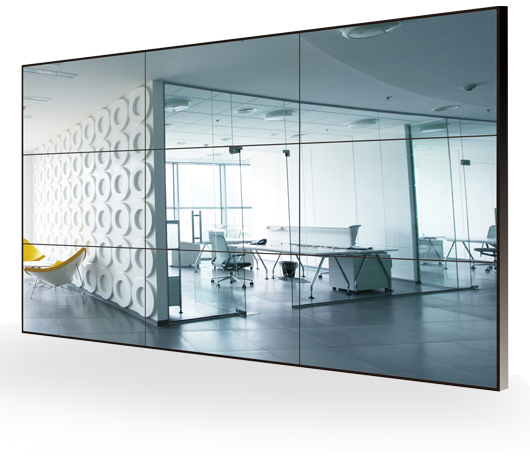

— LCD Video Wall

Your ultimate visualization system
- designed and delivered by the industry experts.

BRWall offers a full selection of high-performance LCD video walls. Our LCD video wall series delivers unparalleled brightness and visual performance. Offering ultra-narrow bezels and a thin-profile design, LCDs create an immersive display platform for your content. Developed for mission-critical operations, LCD video walls are 24/7 reliable and offer extreme longevity and value.

Outstanding Visual Performance and 24/7 Reliability for Mission-Critical Applications

LCD video walls feature the narrowest bezels and slimmest installation depths. They are available with 46” or 55” display size, screen-to-screen bezel widths as narrow as 1.8mm, 500 or 800 nits brightness levels, various mounting options, and premium options such as touch technology and a fiber optic video extender. Whatever your choice, your video wall will be purpose-built to meet your requirements and integrated at your facility by our expert installation team.

Industry-Leading Visualization Purpose Built for Your Needs.

Ultra-narrow bezels

BRWall LCD displays feature a thin-profile design and a screen-to-screen bezel width of as little as 1.8mm. This design minimizes the appearance of “seams” on the video wall, creating an immersive visual experience.

Superior brightness

BRWall displays deliver high contrast ratios and brightness of up to 800 nits, making them an excellent solution for environments with significant ambient light.

Complete interfaces, digital loop-through

Support DP 4K digital signal loop-through;provide HDMI, DVI and VGA input ports, and DP, DVI input and output ports; suitable for various application scenarios.

24/7 reliable

Our video walls are designed for use in 24/7 control rooms and other critical environments that demand continuous operation.

User-friendly menus

User can select the color temperature mode and adjust display parameters such as brightness, contrast and saturation according to the environment, so as to optimize the picture quality.

Frame compensation function

Display compensation is added to the seam area of splicing units to effectively reduce the picture fault and enhance the sense of picture continuity on the spliced screen.

Built for easy serviceability

Our advanced architecture enables the power supply and electronics to be housed in an easily serviceable equipment rack, minimizing service disruption and noise.

Mounting Options

We offer a wide variety of LCDvideo wall mounting options, including freestanding, wall-mounted, curved, and more.
46"Super Narrow Bezel 3.5mm/5.5mm LED Backlit LCD Tiled Display
46-inch tiled display adopts LED full-array type backlight panel, which has more uniform brightness and vibrant colors.3.5mm/5.5mm for the bilateral border and unique no-image-retention design make the picture much clearer. Unique DCDi (directional correlation interlaced) progressive processing can eliminate deformation generated on edges of the images brought by scanning of interlaced video signal, which shows better overall image. 46-inch LED tiled display has no weightless undesirable phenomena, suitable for landscape or portrait or other layout, which provides customers with a variety of display modes. It can achieve the maximum 15x15 wall format, supporting 7x24 hours continuous work, which suit for advertising, information broadcasting and other industries with long-running operation. 46-inch LED tiled display has two kinds of different products in 500nit and 700nit brightness for your choice.
H46(30LN/30HN/50LN/50HN)
Screen Size:
46"
Resolution:
1920×1080(FHD)
Power Consumption:
150w
Integrated Speaker:
No
Pixel Pitch:
0.53mm
Backlight
LED
Aspect Ratio
16:9
Response time
8ms(G to G)
Contrast Ratio
3500:01:00
VESA Compatible
600×400,4-M6
Viewing Angle
178°(CR≥10)
Bilateral Border (bezel between displays)
3.5mm/5.5mm
Net Weight
≈20KG
Brightness
500cd/m2 / 700cd/m2
INPUTS/OUTPUTS
49"Super Narrow Bezel 1.8mm/3.5mm LED Backlit LCD Tiled Display
49-inch tiled display adopts plasma panel with brightness up to 700nit, which can restore the true color effect.1.8mm/3.5mm for the bilateral border creates the ultimate video wall with screens that are seamlessly connected and picture perfect. The color consistency can be achieved by adjusting the white balance through the software. Built-in temperature sensor device can feedback real-time temperature and control body temperature, as well as accurately make heat radiation. 49-inch tiled display adopts modular hardware design, which makes the maintenance much more convenient without removing the screen body.
H49(18LN/18HN/30LN/30HN)
Screen Size:
49"
Resolution:
1920×1080(FHD)
Power Consumption:
160w
Integrated Speaker:
No
Pixel Pitch:
0.6mm
Backlight
LED
Aspect Ratio
16:9
Response time
8ms(G to G)
Contrast Ratio
1400:01
VESA Compatible
600×400,4-M6
Viewing Angle
178°(CR≥10)
Bilateral Border (bezel between displays)
1.8mm/3.5mm
Net Weight
≈28KG
Brightness
500cd/m2 / 700cd/m2
INPUTS/OUTPUTS
55"Super Narrow Bezel 1.8mm/3.5mm/5.3mm LED Backlit LCD Tiled Display
55-inch tiled display adopts plasma panel with brightness up to 700nit, which can restore the true color effect.1.8mm/3.5mm for the bilateral border creates the ultimate video wall with screens that are seamlessly connected and picture perfect. The color consistency can be achieved by adjusting the white balance through the software. Built-in temperature sensor device can feedback real-time temperature and control body temperature, as well as accurately make heat radiation. 49-inch tiled display adopts modular hardware design, which makes the maintenance much more convenient without removing the screen body.
H55(18LN/18HN/30LN/30HN/50LN/50HN)
Screen Size:
55"
Resolution:
1920×1080(FHD)
Power Consumption:
150w
Integrated Speaker:
No
Pixel Pitch:
0.63mm
Backlight
LED
Aspect Ratio
16:9
Response time
8ms(G to G)
Contrast Ratio
4000:01
VESA Compatible
600×400,4-M6
Viewing Angle
178°(CR≥10)
Bilateral Border (bezel between displays)
1.8mm/3.5mm/5.3mm
Net Weight
≈25KG
Brightness
500cd/m2 / 700cd/m2
INPUTS/OUTPUTS
