AVRom Media

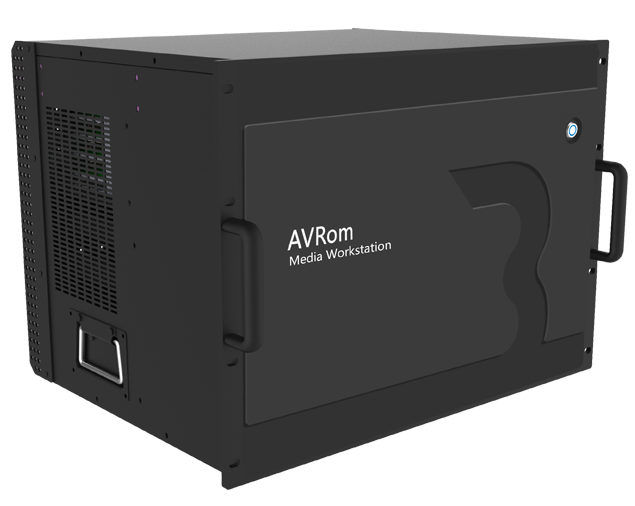

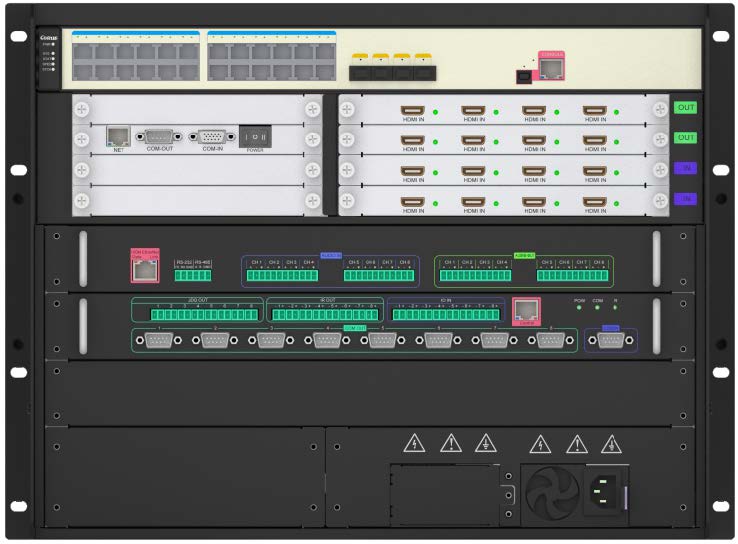

Video Wall Workstation

The media video wall workstation / AVRom host adopts a distributed network management architecture, integrated display control module, audio processing module, network transmission module, environmental control module, and matrix module in one host.

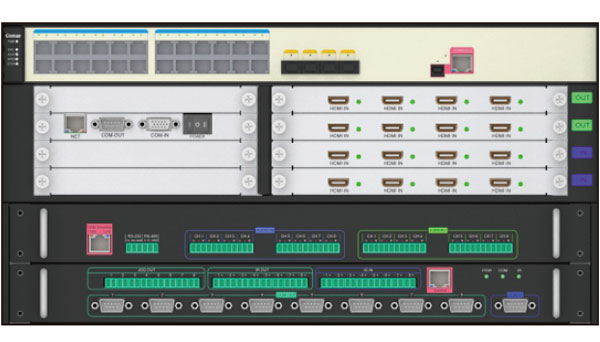

Input/output Interface

Support composite video, color component, VGA, RGBHV, DVI, HDMI, SDI, HDBaseT, optical fiber, IP streaming media, etc., compatible with various common resolutions, and can achieve custom resolution input. The output can support DVI, HDMI, VGA, optical fiber, SDI, HDBaseT, etc. the output can be arbitrarily customized resolution output, and the maximum output resolution supports 1920 × 1200.

Management Interface

1*10/100/1000 network port, 8*RS232 ports, 8*IO ports, 8*2R ports, 8*relay ports.

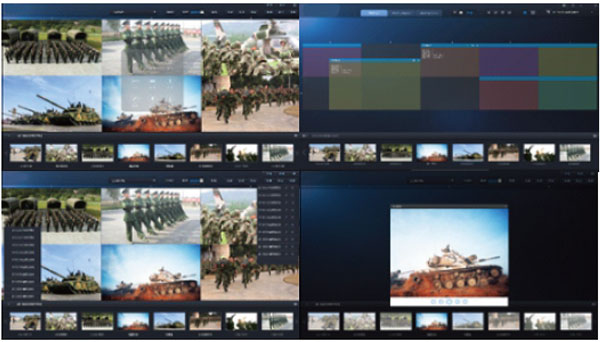

Display Control

Full visual operation management, "see" and "controlled" are completely synchronized; one client manages local and remote and multiple screens.

Matrix Control

One client implements unified management of multiple arrays, display switching, and scene management.

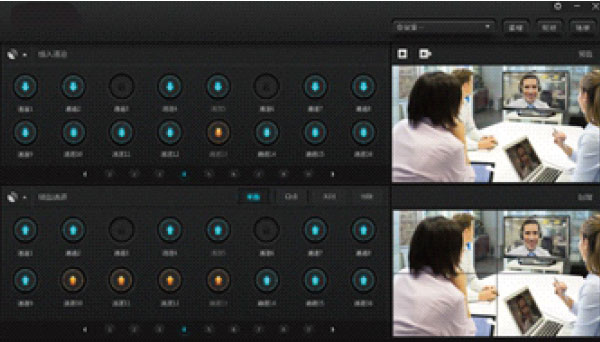

Audio Control

Visual control of audio signals, arbitrary switching, digital control and transmission, get rid of mixer.

Authority Management

Support user authority management; function module authority management, single input or group signal source authority management, single screen or group screen authority management.

Environmental Control

The user can also preset the temperature, humidity, air quality, lighting, voltage and other indicators of the control room. the system can detect and control automatically in real time, and can also perform manual control.

Operations Management

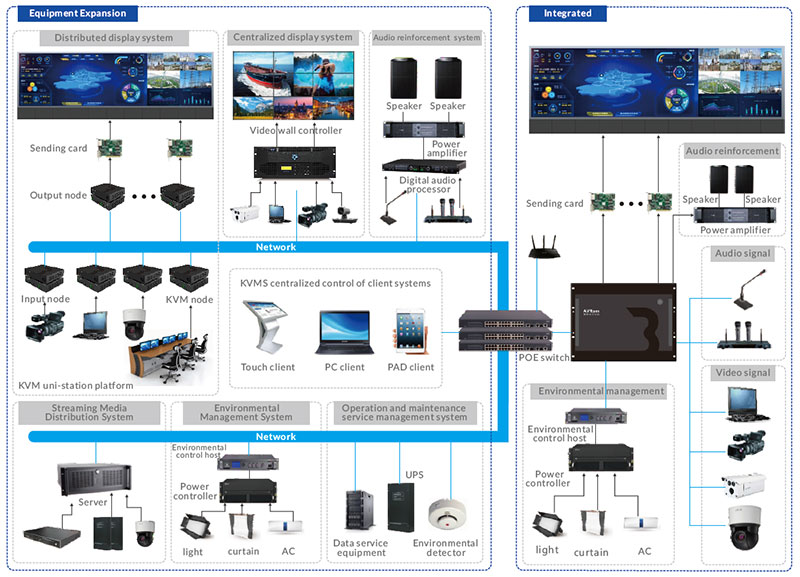

A complete and realistic presentation of the entire system diagram, detailed links to each line, and true reflection of the system's link lines. when the system fails, warnings and failure levels and information pop up.

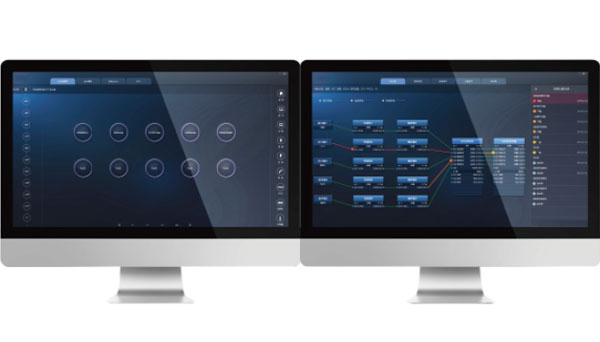

Unified Management

Unified management of all system control software.

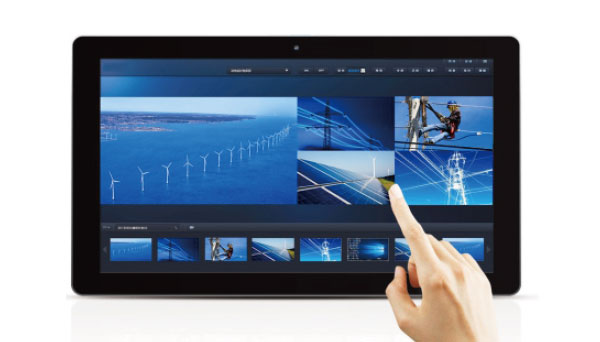

Visual Operation

Real-time display of high-definition video and audio, realizing the "what you see is what you get" operating experience, and solving the troubles caused by "blind control”.

Synchronous Transmission

Synchronous transmission and management of video, audio, RS232, IR, USB.

Interaction Management

The software interacts with the device, and the working status of the device is displayed on the software simultaneously.

All- Media

HDMI, DVI, VGA, CVBS, Ypbpr, RGBHV, SDI, IP streaming media access at the same time.

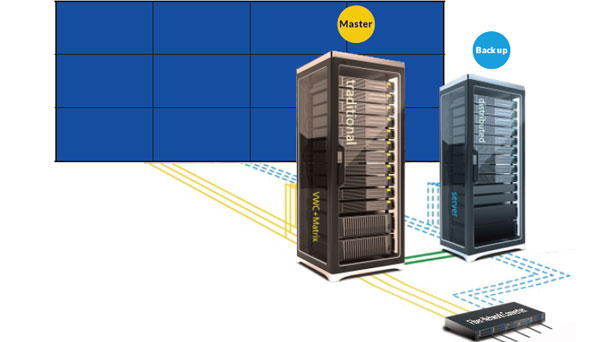

Full System Backup

Centralized, distributed, centralized + distributed backup, combining traditional and distributed, breaks the embarrassing situation where traditional and distributed systems cannot coexist.
